Reduce fluid flow rates by 25% or more

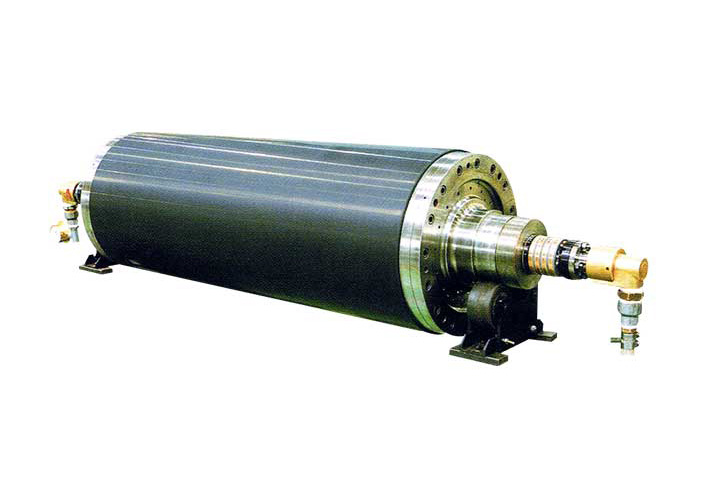

Fluid Circulation Jacket Rolls are equipped with Jacket Chambers that contain a two-phase thermal medium. The high-precision uniform-temperature effects of the Jacket Chambers reduce flow rates by 25% over conventional designs and allow for a roll surface temperature profile that is accurate to within 1℃. These rolls deliver ultra-precision and conserve energy, an unprecedented combination. Their capability to reduce fluid flow rates further reduces equipment costs. These rolls can be used for heating or cooling, and explosion-proof designs are an option.

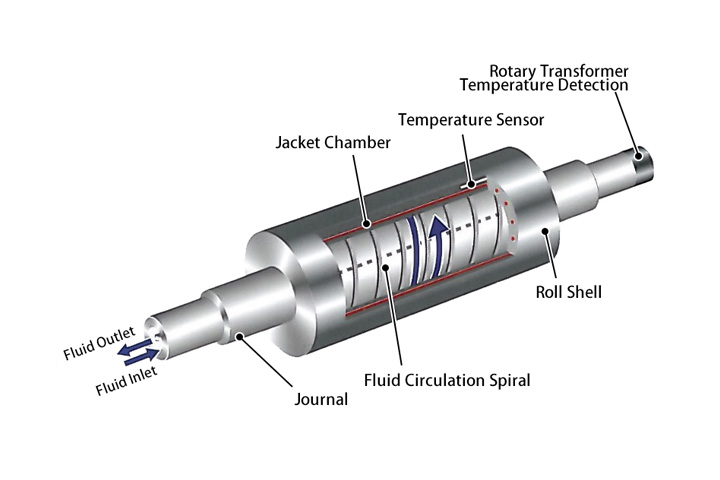

Structure of Fluid Circulation Jacket Rolls

Features of Fluid Circulation Jacket Rolls

• POINT
  Reduces Equipment
• POINT
  Heat Source
• POINT
  Reduces Condensation on Chill Rolls
• POINT
  Conserves Energy
• POINT
  Operates at Roll Surface Temperature

3 minimizations due to the work of the jacket chamber

~Solving the problem of internal clogging of chill rolls~

• POINT
  Hot and cold spots due to scale deposited on the inner circumferential surface of the roll can be minimized.
• POINT
  The jacket chamber can minimize the narrowing of the flow path due to scale deposited in the fluid flow path, and the uneven temperature distribution on the roll surface due to a decrease in flow rate.
• POINT
  Since it is not necessary to descale the inside of the roll for a longer time, descaling costs can be minimized.

Main applications

• Casting roll
• Multi-product laminate, etc.
