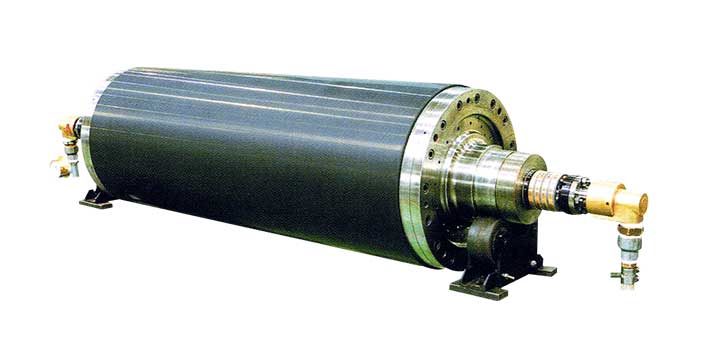

Fluid Circulation Jacket Rolls

Reduce fluid flow rates by 25% or more

Fluid Circulation Jacket Rolls are equipped with Jacket Chambers that contain a two-phase thermal medium. The high-precision uniform-temperature effects of the Jacket Chambers reduce flow rates by 25% over conventional designs and allow for a roll surface temperature profile that is accurate to within 1℃. These rolls deliver ultra-precision and conserve energy, an unprecedented combination. Their capability to reduce fluid flow rates further reduces equipment costs. These rolls can be used for heating or cooling, and explosion-proof designs are an option.

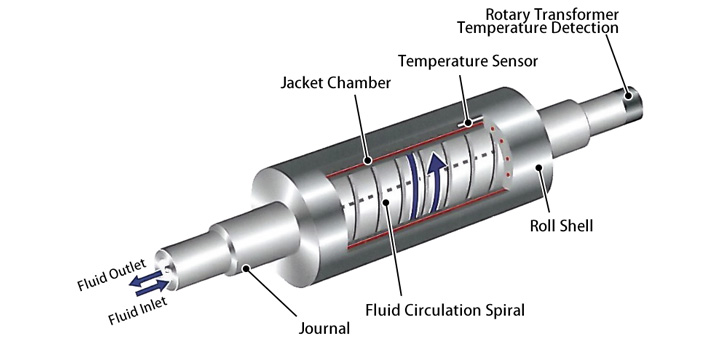

Structure of Fluid Circulation Jacket Rolls

  • Structure of Fluid Circulation Jacket Rolls
  • Structure of Fluid Circulation Jacket Rolls

Features of Fluid Circulation Jacket Rolls

  • Reduces Equipment
  • Heat Source
  • Reduces Condensation on Chill Rolls
  • Conserves Energy
  • Operates at Roll Surface Temperature

Main applications

  • Casting roll
  • Multi-product laminate, etc.
