Thin Sleeve Interchangeable Induction Heated Jacket Rolls

Interchangeable sleeve for conventional Induction Heated Jacket Rolls

By using interchangeable sleeves, the roll surface of conventional Induction Heated Jacket Rolls can be changed to meet various specifications. Meanwhile, the interchangeable sleeve can act as a spare in case of trouble with the surface, thus reducing downtime and enabling quick recovery during production.

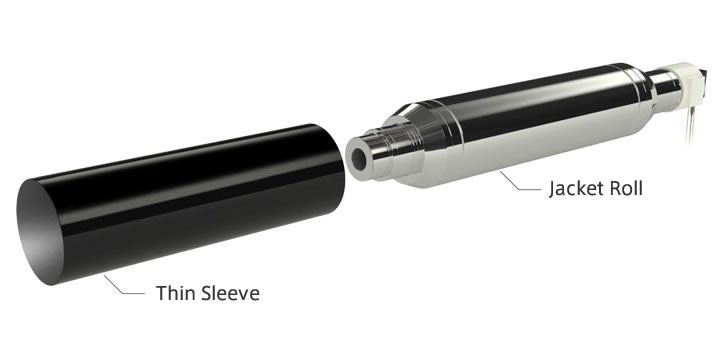

Structure of Thin Sleeve Interchangeable Induction Heated Jacket Rolls

  • Structure of Thin Sleeve Interchangeable Induction Heated Jacket Rolls

Please contact us for details of available roll sizes and surface specifications.

Features of Thin Sleeve Interchangeable Induction Heated Jacket Rolls

Easy attachment; just provide air

The sleeve is easily attachable by the static pressure of air.

Reduction of maintenance costs

The sleeve is replaceable by the customer, substantially reducing downtime and maintenance costs.

Various surface treatment options

We provide various surface options such as silicone rubber, Teflon coating, and fine engraving. Contact us for further information on custom treatments.

High accuracy in uniform temperature distribution

Thin sleeves are attachable without compromising the accuracy of uniform temperature distribution of Induction Heated Jacket Rolls.

Exploring new possibilities

Combining uniform temperature rolls and thin interchangeable sleeves can contribute to the development of new products.

Attaching a thin sleeve


  • Inject air radially through the air holes.

  • The air’s static pressure expands the thin sleeve and creates a uniform air layer, enabling easy insertion of the Jacket Roll.

  • Discontinue the air; the margin enables the sleeve to firmly attach to the Jacket Roll. To remove, inject air again.
